Archify Diagram Viewer

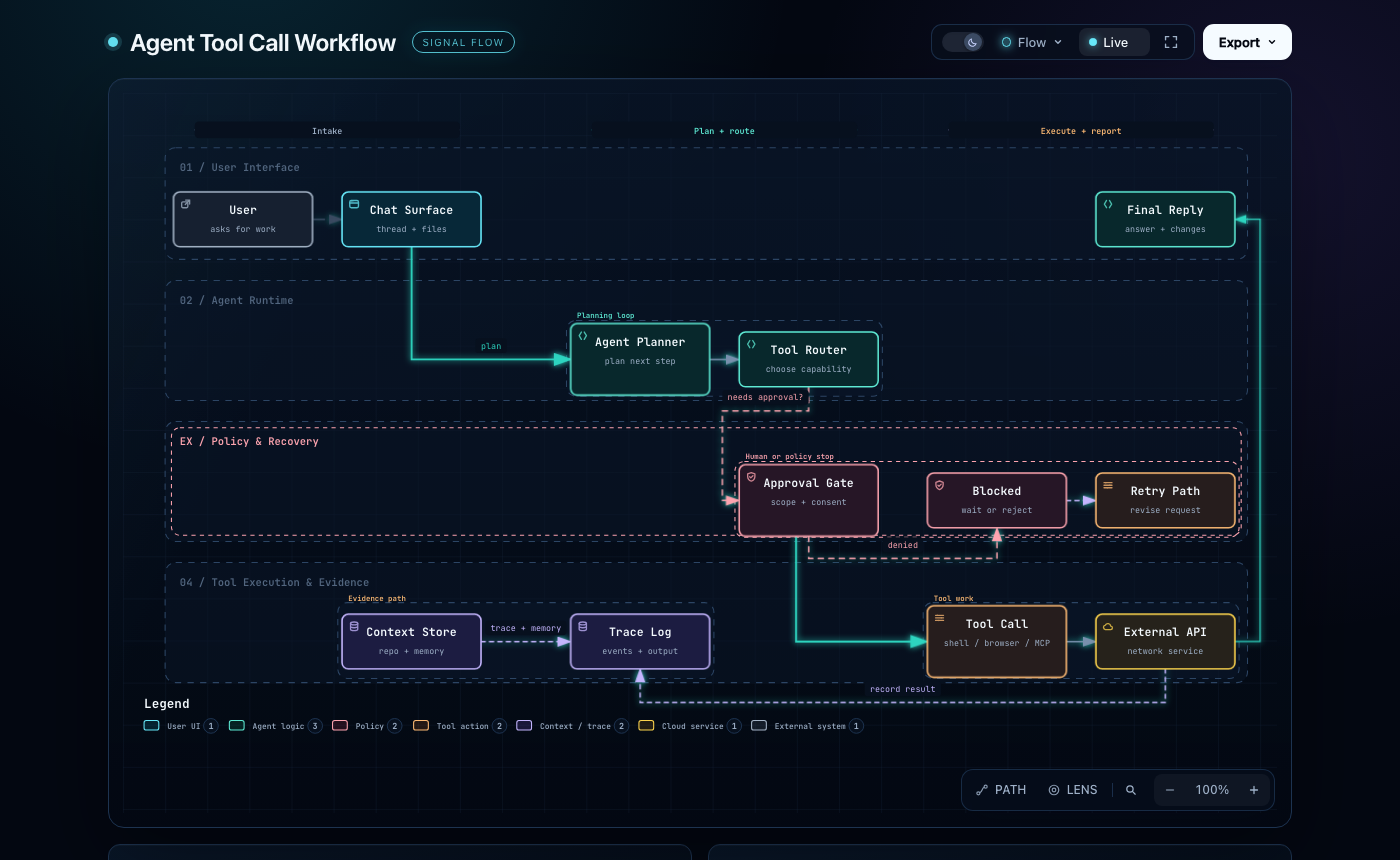

Create and view Archify diagrams inside VS Code. You write a diagram as a .archify file in YAML; clicking it opens the interactive diagram, and the diagram follows your edits as you type.

This is an unofficial extension. It bundles the Archify renderer (MIT, © tt-a1i) and runs it on VS Code's own Node runtime, so nothing else needs to be installed.

Free and open source. If it saves you time, you can buy me a coffee ☕

Supported files

File	Format	What the extension does
name.archify	YAML (the main format)	Opens as the interactive diagram. Show Source, live updates, validation, completion, templates.
name.architecture.json, name.workflow.json, name.sequence.json, name.dataflow.json, name.lifecycle.json	JSON (Archify's own CLI format)	Opens as text, with a preview beside it and validation. For files produced by the Archify CLI or AI agents.
Rendered Archify .html	HTML	Read-only viewer instead of a browser.

New diagrams should be .archify files; everything below describes them unless it says otherwise.

Quick start

The fastest start: right-click a folder in the Explorer and choose Archify | New Diagram… (also in File → New File… and the Command Palette). Pick a kind of diagram (Architecture, Workflow, Sequence, Data Flow, Lifecycle or Everyday Plan), give it a name, and a small working .archify file is created and opened. Change its YAML to fit your case.

To write one by hand:

1. Create a file ending in .archify, for example hello.archify:

   schema_version: 1
   diagram_type: architecture
   meta:
     title: Hello Archify
     output: hello.html
   components:
     - { id: browser, type: frontend, label: Browser, pos: [40, 120], size: [140, 60] }
     - { id: api, type: backend, label: API, pos: [260, 120], size: [140, 60] }
     - { id: db, type: database, label: PostgreSQL, pos: [480, 120], size: [140, 60] }
   connections:
     - { from: browser, to: api, label: HTTPS }
     - { from: api, to: db, label: SQL }


2. Click it in the Explorer: the diagram opens.

3. To edit, use Show Source in the editor title. The YAML opens beside the diagram, which re-renders as you type.

The same file is in examples/hello.archify.

The .archify format

A .archify file is an Archify diagram written in YAML. Its fields are those of Archify's diagram schema; the extension converts the YAML for the renderer, so you never handle JSON yourself. diagram_type selects the kind of diagram: architecture, workflow, sequence, dataflow or lifecycle.

• Opening: the Archify Diagram editor is the default for .archify. Use Reopen Editor With… → Text Editor to edit the YAML full-screen.
• Completion: with the YAML extension (redhat.vscode-yaml) installed, .archify files get completion and hover from Archify's schemas. The schema follows diagram_type.

.archify files from extension version 0.2.0 were written in JSON. They still open, because JSON is valid YAML, but new files should use YAML.

Archify's JSON files

The Archify CLI and the AI agents that use it write diagrams as JSON, named name.architecture.json, name.workflow.json and so on. The extension supports these too: they open as text with a preview button in the editor title (Cmd/Ctrl+K V to the side, Cmd/Ctrl+Shift+V in place), get validation in Problems, and get schema completion from VS Code's built-in JSON support. Any other .json file that declares an Archify diagram_type previews the same way.

Features

• New diagram from a template: Archify | New Diagram… creates a starter .archify file for any of the five diagram kinds, or an everyday plan, in the chosen folder.
• Diagram editor: .archify files open as the rendered diagram. Show Source opens the YAML beside it, and edits re-render live.
• Live updates: the diagram re-renders as you edit, and keeps the focus and route you selected (#focus=…, #route=…).
• HTML viewer: right-click a rendered .html file and choose Archify | Open in HTML Viewer, or use Reopen Editor With… → Archify HTML Viewer. For Archify HTML already open as text, a button appears in the editor title. The viewer reloads when the file changes on disk.
• Problems: YAML syntax errors, plus archify validate's schema, layout and evidence problems, appear at the matching line of the .archify file.
• Brand logos: after brand: the editor suggests Archify's built-in brand IDs (PostgreSQL, Redis, Kafka, Docker, …). Typing an alias or product name finds them too, so kafka offers apache-kafka. An unknown brand is reported on its own line.
• Schema help: completion and hover from Archify's own schemas, through the YAML extension for .archify files.
• Source links: in source-backed diagrams, clicking a source reference opens that file and line range in the editor. If the file is not in the workspace, the web link opens instead.
• Export: the diagram's own Export menu (PNG, SVG, share card, …) saves through a VS Code save dialog.
• Commands: Archify | New Diagram…, Archify | Render to HTML File…, Archify | Open in Browser, Archify | Refresh Preview, Archify | Show Source.

3D view

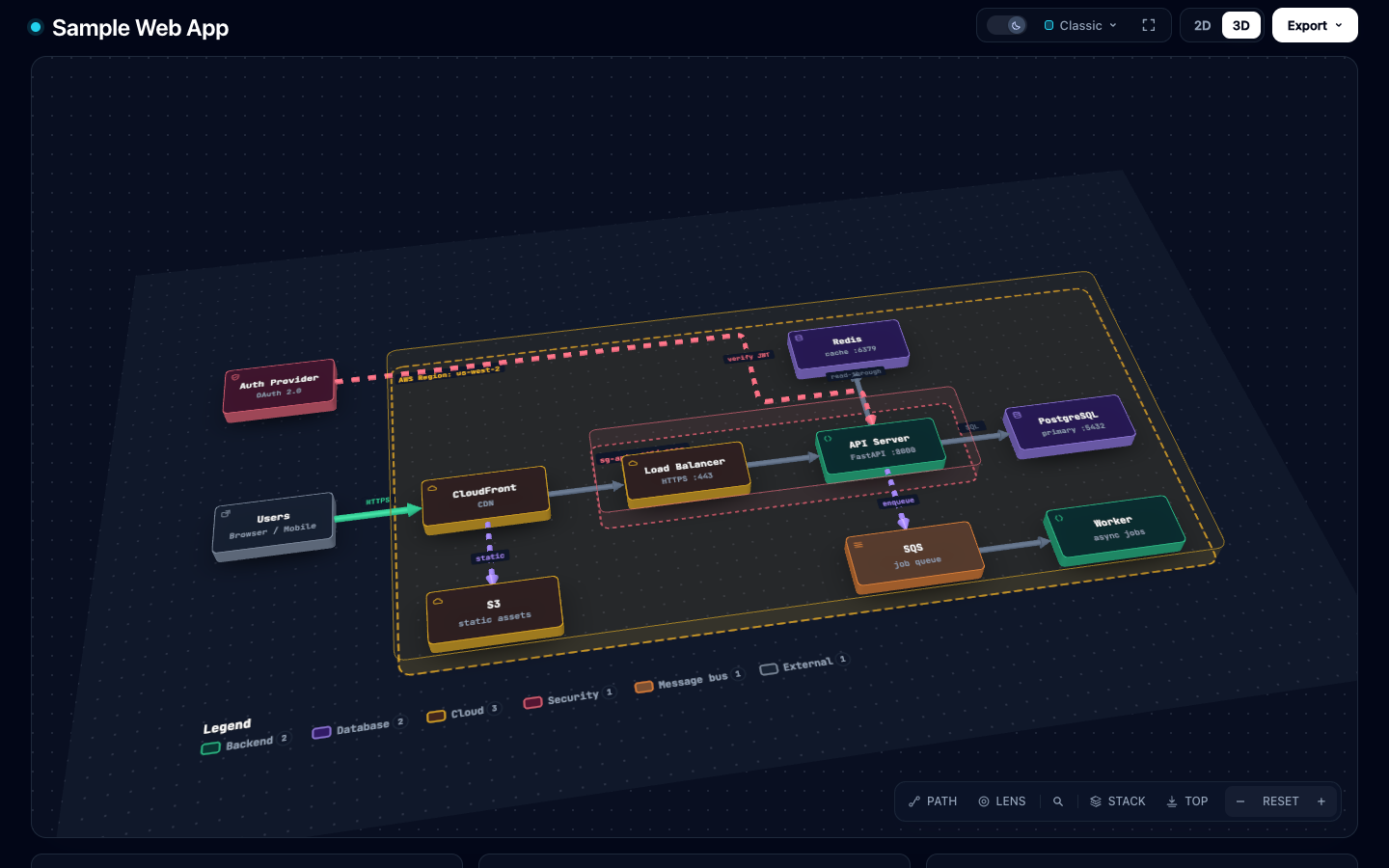

Every diagram can also be seen in 3D. The 2D | 3D switch next to Export in the diagram's toolbar shows which view you are in; click it to flip.

The 3D view is built from the diagram Archify draws, so it looks the same: each node becomes a raised block whose top is the node as Archify draws it, relationships become pipes along Archify's routes with their colours, dashes and arrowheads, and the canvas, frames, lanes and legend form the floor. It works for all five diagram kinds, in every theme and style (Classic, Signal Flow, Blueprint, Editorial).

While 3D is on, three controls join the bottom-right dock next to PATH and LENS:

• STACK lifts nodes into levels by kind: clients and external systems on top, security below them, services in the middle, data on the floor. Click again for the flat layout.
• TOP looks straight down, like 2D.
• RESET (the middle of the zoom stepper, or 0) flies back to the whole diagram, wherever you have moved to.

Moving around:

• Drag to turn, right-drag to move. On a trackpad, scroll with two fingers to move in any direction and pinch to zoom; a mouse wheel zooms. The dock's − and + and the - and + keys work too, beyond the 2D limits.
• Click a block to focus it, as in 2D: the Semantic Passport opens and unrelated parts fade. Hover a block to see its one-hop trace. Double-click a block to fly to it, or empty space to show everything.

Animation follows 2D exactly, because the 3D view reads Archify's own animations as they play: the trace (relationships drawing in, nodes pulsing) when the diagram opens or 3D is chosen, the hover trace, and the flows from the Semantic Passport, Path and Lens. Live off, or reduced motion, keeps it still.

Export → 3D view saves the current 3D view as a PNG. Each open diagram remembers whether it was in 3D, its camera and its levels; set archify.defaultView to 3d to open diagrams in 3D.

The 3D view draws only when something moves, so an idle diagram costs no GPU time.

Source evidence

A diagram that declares meta.repository and sources is verified against a local Git checkout whose origin and pinned commit match. The extension uses the Git top-level directory of the diagram file, or archify.repoRoot when set.

When verification fails, the default (archify.sourceEvidence: "fallback") still shows the diagram without source links, explains why in a notice, and reports the reason as a warning. Set it to "strict" to treat this as an error, as the Archify CLI does. Archify | Render to HTML File… always verifies strictly and asks before rendering without source links.

Settings

Setting	Default	Description
archify.theme	vscode	vscode follows the color theme; dark or light force one; diagram keeps the diagram's own choice.
archify.defaultView	2d	3d opens diagrams in the 3D view. Each open diagram remembers its own choice.
archify.preview.liveUpdate	true	Re-render while typing; when off, re-render on save.
archify.preview.debounceMs	400	Delay before re-rendering after an edit.
archify.validation.enabled	true	Report validation results in Problems.
archify.quality	""	Force the standard or showcase quality profile.
archify.sourceEvidence	fallback	fallback or strict handling of unverifiable source evidence.
archify.repoRoot	""	Checkout used to verify source evidence.
archify.nodePath	""	Node.js 18+ executable to use instead of VS Code's runtime.

Security

Diagrams run in a webview with a strict content security policy. Only the page's own inline scripts and the extension's bundled 3D viewer run (via a per-render nonce), there is no network access for scripts or fetches, and links open through VS Code.

Development

npm install
npm run build             # bundle to dist/
npm test                  # unit tests + renderer tests (Node)
npm run test:integration  # runs the suite inside VS Code
npm run package           # build archify-vscode-ext-<version>.vsix

Press F5 to launch an Extension Development Host with the test fixtures.

Code layout

Folder	What it holds
src/extension.ts	Activation: creates the views and registers everything
src/commands/	Command handlers, grouped by job, and the editor context keys
src/views/	The diagram view (editor for .archify, side preview for JSON) and the HTML viewer
src/webview/	The page the views show: CSP, the bridge script, messages from the page
src/archify/	Running the bundled Archify CLI: render, validate, runtime settings
src/sources/	Reading diagram files: type detection, YAML/JSON, source evidence
src/language/	Editor help: Problems, brand completion, templates
src/util/	Logging, settings, file reading
src/viewer3d/	The 3D view; runs inside the Archify page and is bundled to dist/viewer3d.js with three.js

Updating the bundled renderer

vendor/archify/ and schemas/ are generated from an Archify checkout:

node scripts/sync-archify.mjs /path/to/archify   # default: ../../ws-storm/archify
npm test

vendor/archify.json records the upstream version and commit.

Support

Archify Diagram Viewer is built and maintained in my spare time. If it helps you, a coffee keeps the releases coming:

Bug reports and ideas are welcome in the repository issues.

License

MIT. See LICENSE. The bundled renderer is MIT-licensed by tt-a1i; see vendor/archify/LICENSE and vendor/archify/THIRD_PARTY_NOTICES.md.
